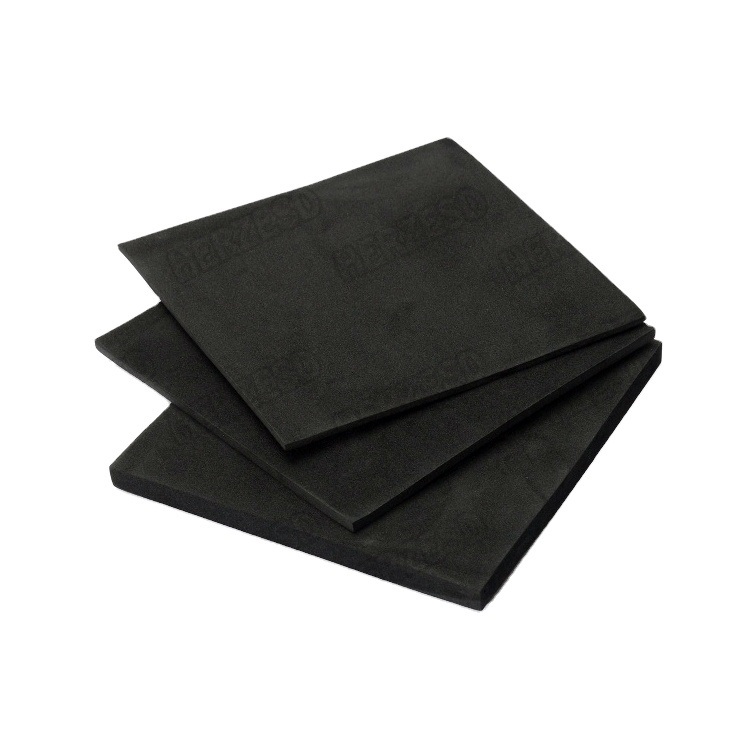

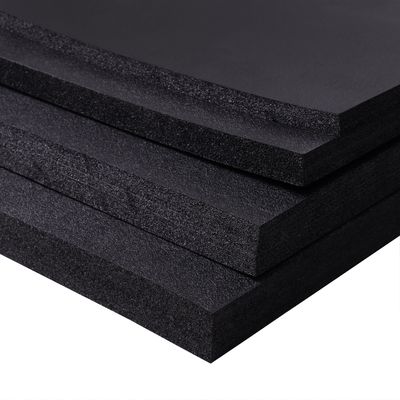

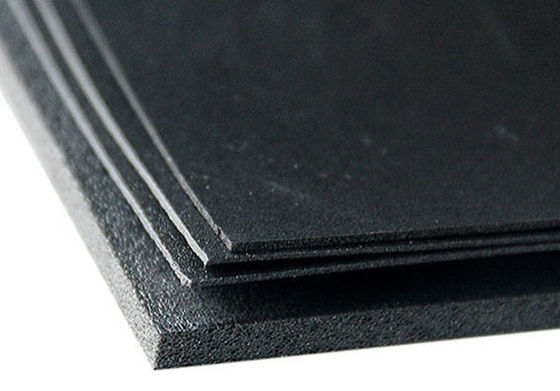

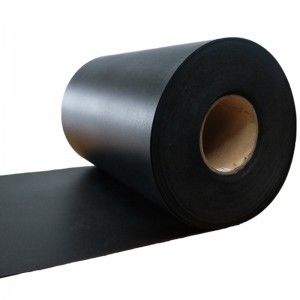

High Density Customized 2-200mm Thickness 10e3-10e6ohm Surface Resistance ESD Foam for Electronic Products Packing
Szczegóły Produktu:
| Miejsce pochodzenia: | Szanghaj, Chiny |
Zapłata:
| Minimalne zamówienie: | 500 |
|---|---|
| Cena: | $1.70-2 |
|
Szczegóły informacji |
|||
| Tworzywo: | IXPE | Typ: | Piana |
|---|---|---|---|
| Numer modelu: | HZ-1201A, HZ-1201B | Kolor: | Czarny |
| Grubość: | 2-200mm | Rozmiar: | Dostosowany rozmiar |
| Odporność na powierzchnię: | 10e3-10e6ohm; 10e3-10e6ohm; 10e6-10e9 ohm 10e6-10e9 omów | Gęstość: | 60-150 kg/m3 |
| Funkcja: | Przewodzący/antystatyczny | Zakres grubości: | 2-200mm |
| Zakres oporu: | 10e3-10e9 omów | Zakres gęstości: | 60-150 kg/m3 |
| Zakres rezystancji powierzchniowej: | 10e3-10e9 omów | Dostosowywany rozmiar: | Tak |
| Ochrona ESD: | Tak | ||
| Podkreślić: | 2-200mm Thickness ESD Foam,10e3-10e6ohm Surface Resistance ESD Foam,60-150 Kg/m3 Density ESD Foam |
||
opis produktu
High Density Customized Protective ESD Packing IXPE Conductive Foam Gift Box Insert Foam
Product Specifications
| Material | IXPE |
|---|---|
| Type | Foam |
| Model Number | HZ-1201A, HZ-1201B |
| Color | Black |
| Thickness | 2-200mm |
| Size | Customized Size |
| Surface resistance | 10e3-10e6ohm; 10e6-10e9 ohm |
| Density | 60-150 Kg/m3 |
Why ESD Protection is Essential
Electronic components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
ESD Protection Standards
Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
Why Choose HerzESD
HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better means contradicting a more established but sometimes flawed opinions on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.
