HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance
Szczegóły Produktu:
| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | Herzesd |
| Numer modelu: | HZ-30617 |
Zapłata:
| Minimalne zamówienie: | 100 |
|---|
|
Szczegóły informacji |
|||
| Grubość: | 2 mm/3 mm | Tworzywo: | kauczuk nitrylowy |
|---|---|---|---|
| Odporność na powierzchnię: | 10E6-10E9 Ohm | Pod oporem warstw: | 10E3-10E6 Ohm |
| Rozmiar: | 1*10M; 1*10M; 0.6*10M; 0.6*10M; 1.2*10M per roll 1,2 * 10 M na | Odporność na objętość: | 10e7-10e10 Ohm*cm |
| Ładunek elektrostatyczny tarcia: | <100 V (powierzchnia), <50 V (warstwa przewodząca) | Model: | HZ-30617 |
| Normalny rozmiar: | 1m*10m; 1m * 10m; 1.2m*10m 1,2 m * 10 m | Kolor: | Zielony/szary/niebieski |
| Typ powierzchni: | Matt/błyszczący | STATYCZNA warstwa rozpraszania: | Odporność na powierzchnię 107-109OHM |
| Warstwa przewodząca: | Opór powierzchni ≤106oHm | Usługa przetwarzania: | Cięcie |
| Dostosuj kolor: | Dostępne z próbką | ||
| Podkreślić: | ESD rubber mat 2mm thickness,ESD mat 10e6-10e9 ohm resistance,anti-static rubber mat with warranty |
||
opis produktu

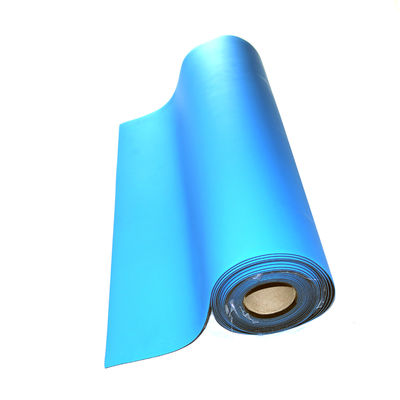

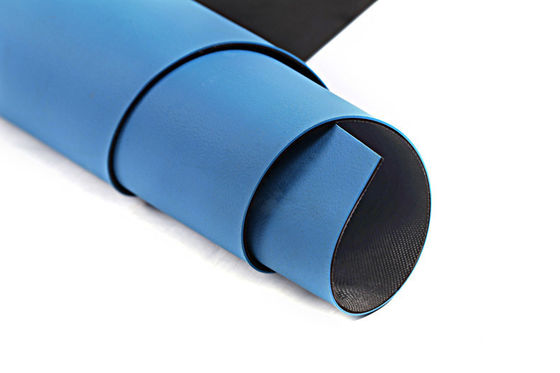

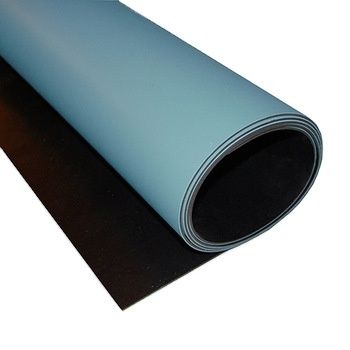

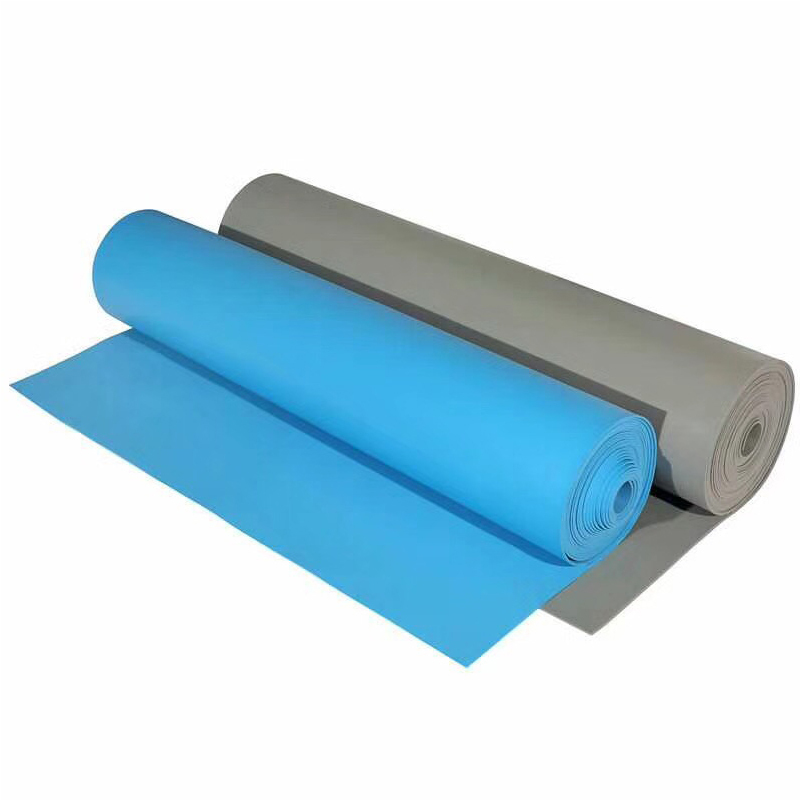

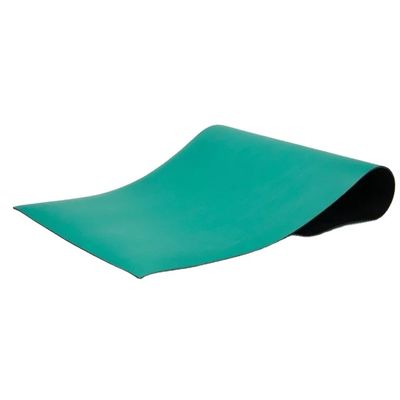

ESD Rubber Table Roll - Antistatic Work Surface Mat
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, designed for static control in high-tech industries. Our ESD Rubber and PVC mats provide excellent resistance to hot solder and chemicals, featuring a two-layer construction with a static dissipative top and conductive bottom layer.
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Standard Sizes | 1m × 10m; 1.2m × 10m |
| Available Colors | Green, Grey, Blue |
| Surface Finish | Matte/Glossy |
| Surface Resistance | ≤106 ohm |
| Volume Resistance | 107-1010 ohm·cm |
Key Features
- Static Dissipation Layer: Surface resistance 107-109 ohm
- Friction Electrostatic Charge: <100V
- Conductive Layer: Surface resistance ≤106 ohm
- Friction Electrostatic Charge: <50V
- Volume Resistance: 107-1010 ohm·cm
- Available in rolls or complete workstation kits with ground snap
- Custom sizes available upon request
Product Images
Packaging & Shipping
About HerzESD
Shanghai Herzesd Industrial manufactures premium ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and advanced technology, with continuous upgrades to enhance security features. We maintain rigorous quality control and precision engineering to ensure long-lasting performance in all ESD solutions.
Frequently Asked Questions
Why do you need ESD protection for your production line?
Electronic components and assemblies vulnerable to electrostatic discharge (ESD) can be damaged when exposed to excessive current or impact energy. This primarily affects semiconductor components and thin-film construction elements, often through human handling. A person can accumulate several thousand volts simply by walking - discharges above 2000-3000V can damage sensitive components while being barely noticeable to humans. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of effective static control and quality assurance.
Why choose HerzESD?
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it challenges conventional industry wisdom. We partner with reliable manufacturers to deliver technologically advanced static control products. Our international collaborations ensure we remain at the forefront of ESD protection innovation, continually improving solutions for static electricity control in industrial environments.
